Smart Monitoring
for Air Dryer Controller
Industrial IoT Gateway designed for Air Dryer Controllers with RS485 connectivity and cloud communication over Wi‑Fi or 4G LTE. The system provides real‑time monitoring, alarm notification, remote diagnostics and industrial telemetry for factory environments.
Powered by ESP32‑S3 with onboard temperature sensing, universal AC 110‑220Vac input and modular LTE support through Mini PCI‑E slot for flexible future upgrades.

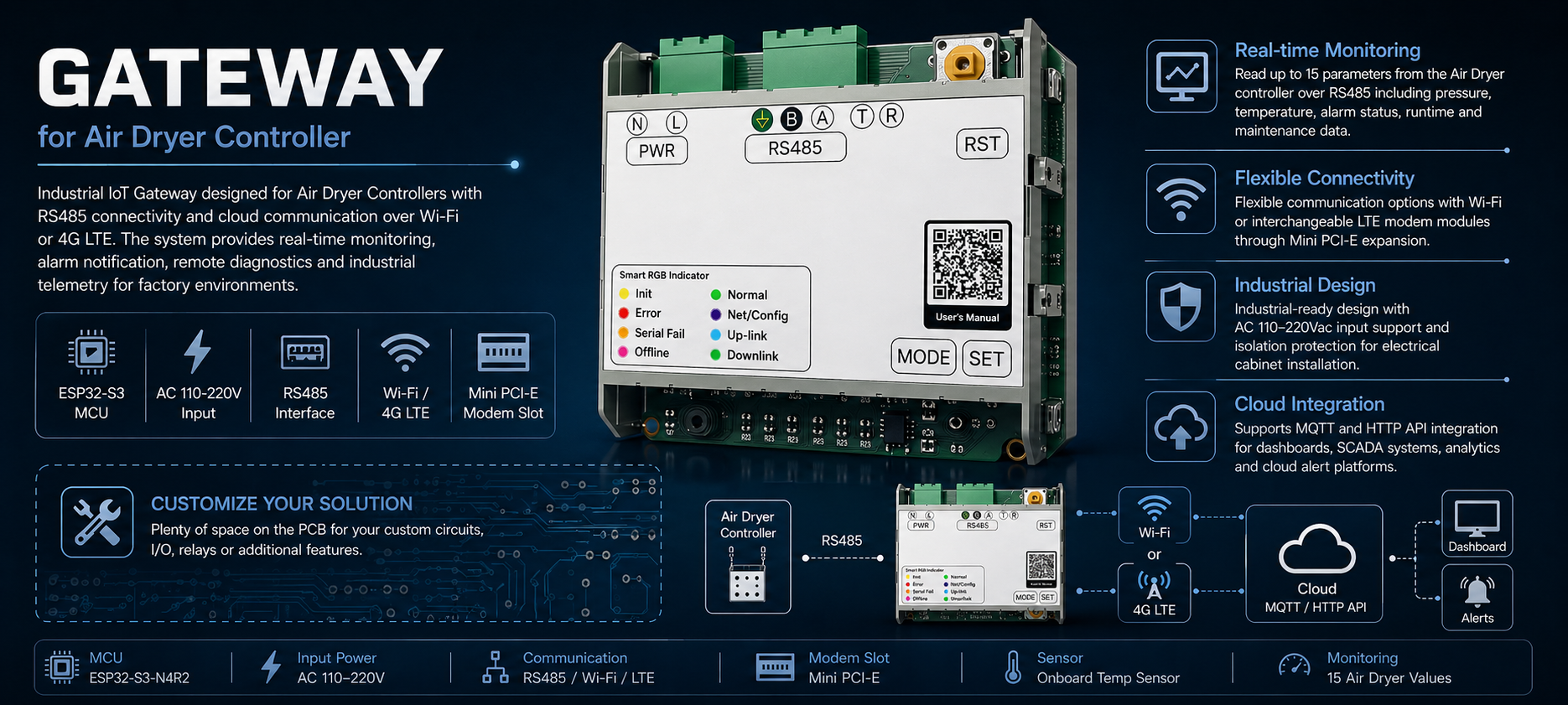

Hardware Overview
System Features
Real-time Monitoring
Read up to 15 parameters from the Air Dryer controller over RS485 including pressure, temperature, alarm status, runtime and maintenance data.
Flexible Connectivity
Flexible communication options with Wi‑Fi or interchangeable LTE modem modules through Mini PCI‑E expansion.
Industrial Design
Industrial-ready design with AC 110‑220Vac input support and isolation protection for electrical cabinet installation.
Cloud Integration
Supports MQTT and HTTP API integration for dashboards, SCADA systems, analytics and cloud alert platforms.
Enclosure & Dimensions
DIN Rail Housing
The enclosure concept uses an ABS housing version approved for HB flammability rating according to UL 94, designed for compact industrial cabinet installation on standard 35 mm DIN rail.
Open PHOENIX CONTACT Datasheet PDFDashboard Example
Picture is for reference only and does not represent the final product.
LTE Module Comparison
| Module | RAT / Rate | Band / Region | Service / Protocol | Interface / Channel |
|---|---|---|---|---|
| AIR780 | LTE Cat‑1 10 Mbps DL / 5 Mbps UL |
FDD B1/B3/B5/B8 TDD B34/B38/B39/B40/B41 Asia / China / SEA focus |
TCP, UDP, PPP, HTTP(S), MQTT Good for telemetry, alarm and periodic data |
USB 2.0, UART, dual USIM Main / AUX / debug serial channels |
| SIM7600 | LTE Cat‑4 150 Mbps DL / 50 Mbps UL |
FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66 TDD B34/B38/B39/B40/B41 Asia / Europe / America |
LTE, UMTS/HSPA+, GSM fallback FOTA, LBS, TLS, VoLTE, GNSS |
USB, UART, I2C, GPIO AT command channel for diagnostics and remote service |
| Quectel EG25‑G | LTE Cat‑4 150 Mbps DL / 50 Mbps UL |
FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 TDD B38/B39/B40/B41 Strong Europe + global coverage |
LTE, UMTS/HSPA+, GSM fallback TCP/IP, HTTP(S), MQTT, FTP(S), SSL, DFOTA |
Mini PCIe / USB 2.0, UART, GNSS Router, VPN and service-access channels |
SIM Tray & Data Plan Options

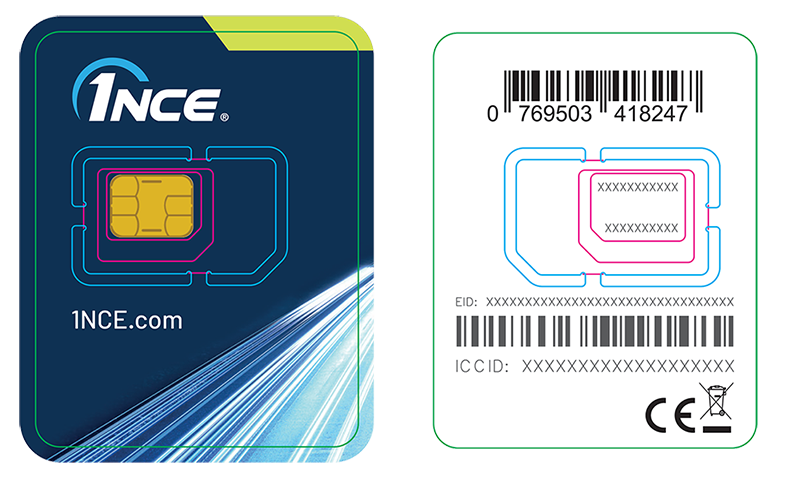

1. IoT SIM Card Industrial
Standard removable SIM option for field service, prototype builds and customers who want to replace the SIM without reworking the PCB.

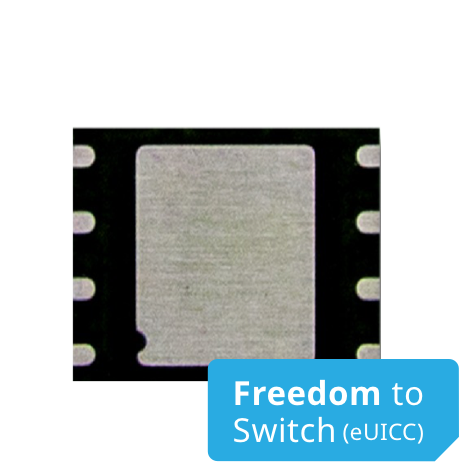

2. IoT SIM Chip Industrial
Embedded eUICC option for production hardware where vibration, security and long-term reliability are more important than SIM swapping.
Recommended Global Package
1NCE Connect flat subscription option for global IoT deployment. Suitable for export models that need roaming coverage across Europe, America and Asia. 500 MB + 250 SMS included 10 years global coverage and software access
Recommended Thailand Package
GOMO 5G No Expiry S package with 10GB/year data. Suitable for Thailand-only deployment where local SIM cost and simple maintenance are the priority.
Platform & Cloud Pricing
Platform Customize
Custom dashboard and data platform for Air Dryer monitoring. Scope can include dashboard layout, data fields, charts, alarm view, report format, user roles and API/data integration.
Recurring & Pass-through Cost
Cloud and tax items are separated from the platform customization fee so project operation cost can be calculated from actual usage.
MA Scope
- Bug fixes and production hotfix support
- Security patching and dependency update review
- Cloud service patch update and runtime maintenance
- Dashboard, API and database performance optimization
- Storage usage review, cleanup and cost optimization
- Backup monitoring, restore check and data retention support
Select Connectivity Option
Wi‑Fi Only
Recommended for factories with existing Wi‑Fi infrastructure
AIR780 LTE
LTE Cat‑1 for Asia IoT bands, standard data service and telemetry channels
SIM7600 LTE
LTE Cat‑4 with wider band support for Asia, Europe and America
Quectel EG25‑G LTE
Global LTE Cat‑4 module with strong bands, data service and channel coverage
